Waterjet Cutting Machine 3015
HM-WJ 3015
The HM-WJ 3015 is our standard-format CNC waterjet cutting machine with a generous 3000x1500mm working area, the most popular size for industrial fabrication. Powered by a 37 kW high-pressure intensifier pump reaching 420 MPa, it features a 3D cutting head for angled and bevel cuts, Yaskawa servo drives, and RENISHAW laser compensation for sustained accuracy over the machine's lifetime. Cuts virtually any material: metals up to 200mm, stone, marble, granite, glass, ceramics, carbon fiber, and composites. Complete turnkey solution with water treatment, CNC abrasive feeder, oil cooling, and full installation.
Technical Specifications
- Voltage
- 380V 50Hz 3-phase
Technical Video
LUCOHE Waterjet Cutting Technical Demonstration
Technical overview of 420 MPa ultra-high pressure cold cutting without thermal distortion, supplied and supported across Ireland & UK by Gleam Equipment.
Technical Specifications
| Voltage | 380V 50Hz 3-phase |
| Repeatability | ±0.015 mm |
| Control system | NC Studio CNC |
| Working area | 3000 x 1500 mm |
| Max flow | 3.8 L/min |
| X travel | 3050 mm |
| Y travel | 1550 mm |
| Z travel | 220 mm |
| Precision | ±0.05 mm / 300 mm |
| Pump power | 37 kW (50 HP) |
| Max XY speed | 30 m/min |
| Max pressure | 420 MPa (60,000 psi) |
| Servo system | Yaskawa (Japan) |
| Linear guides | HIWIN / ROUST |
| Cuttable metals | Steel, Stainless, Aluminum, Copper, Titanium |
| Max cutting depth | Heavy thickness (+200 mm and beyond according to material) |
| Working pressure | 360 MPa (50,000 psi) |
| Cuttable non-metals | Stone, Glass, Ceramics, Composites, Rubber |
Features

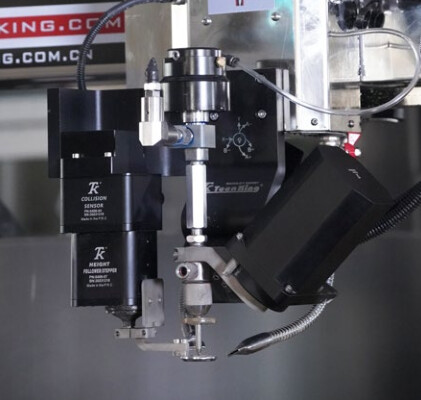

- 3D Cutting Head

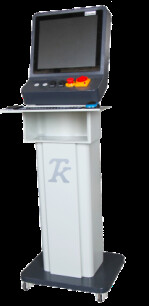

- CNC Control
- Touch Screen Control
- Water Treatment System
- CNC Abrasive Feeder
- Oil Cooling System
- Laser Precision Compensation
- Wireless Remote Control

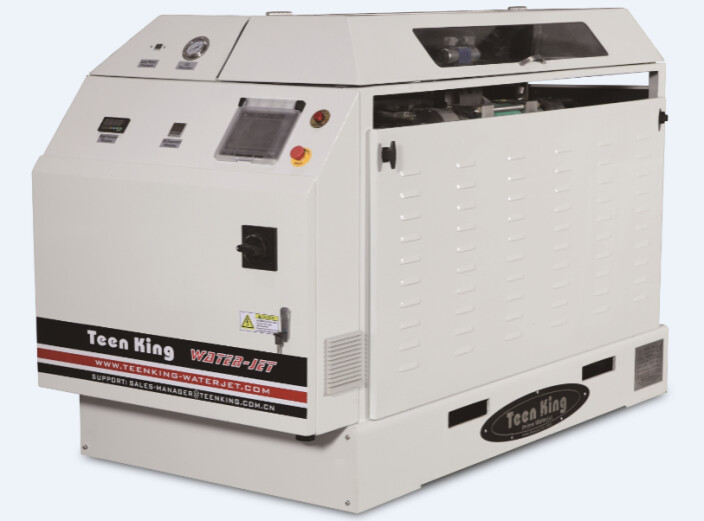

- High Pressure Intensifier Pump
- Safety Enclosure
Applications
